Nonwoven fabrics slitting rewinding machinery

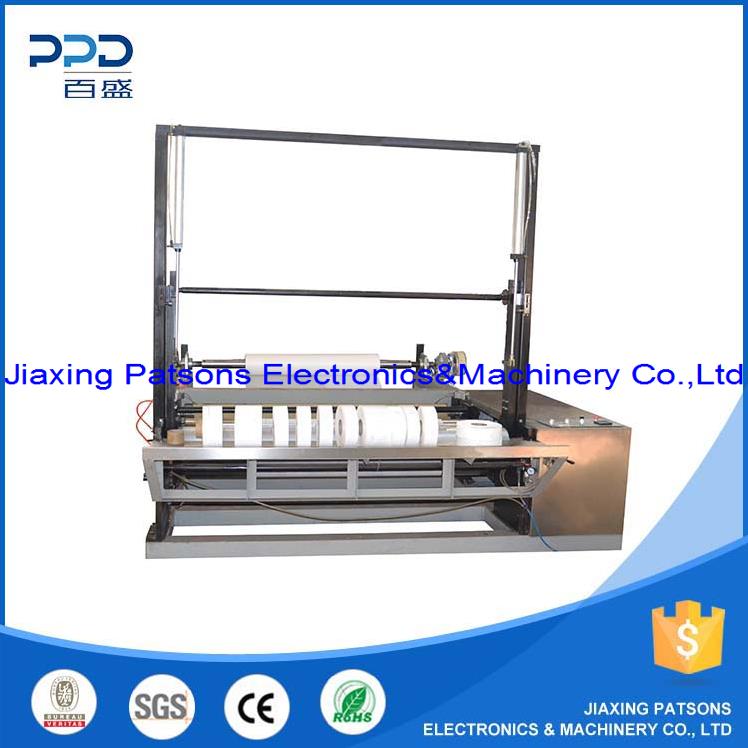

Non woven fabrics rewinding slitting machine
PPD-NWSR1300

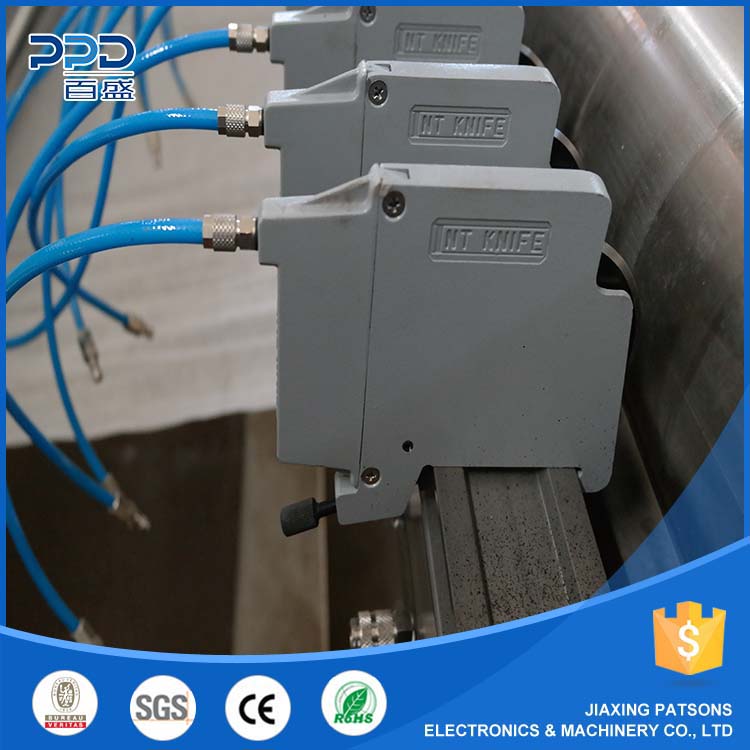

Non woven fabrics rewinding slitting machine PPD-NWSR1300 is a model for slitting the jumbo roll of nonwoven fabrics into small roll as per required.The minimum slitting width is at 20mm,by the pneumatic knife system,the different width of slit roll is very easy for set,the adjustment is very simple from the different width.
Machine is able to load the jumbo roll at 1200mm of outer idameter,the tension system is with automatic set.

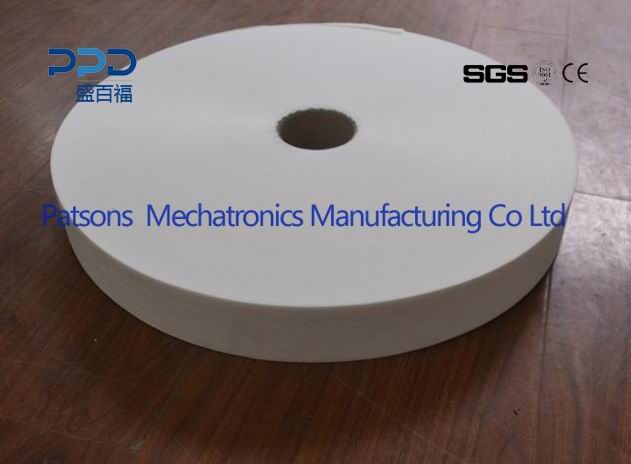

It is ideal for slit the different nonwoven fabrics cloth,include poleyster non-woven,viscose nonwoven,spunlace nonwoven,PP nonwoven,wooden pulp composited nonwoven etc.
Our company is developed the full range of this range,include the width 1300,1600,2500mm etc for per buyer option.
The individual customized requirement is acceptable by our strong R&D ability.
Model detail:
Name:Non woven fabrics rewinding slitting machine
Model:PPD-NWSR1300
Unwinding roll width:1300/1600/2500mm etc
Unwinding roll ID:76mm
Unwinding roll OD:1200mm
Slitting roll width:20mm to max width
Slitting roll ID:3inch option
Slitting roll OD:600mm
Design speed:max 300m/min
Power:2.5kw
Voltage:220/380/415/450v
Frequency:50&60Hz
Air need:0.2Mpa
