Food baking paper rewinding mahcine

PPD-CGFP450

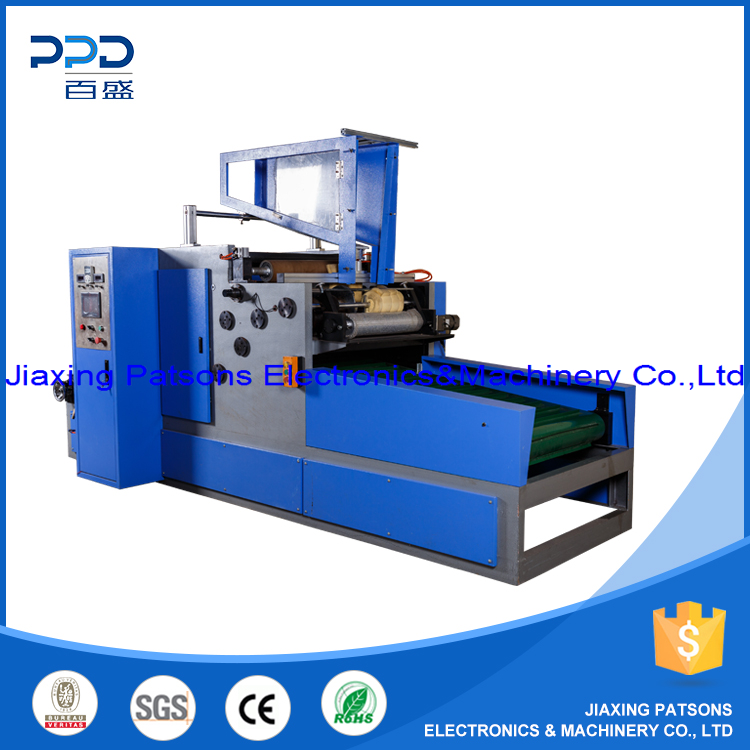

Food baking paper rewinding mahcine PPD-CGFP450 is ideal model for making the food baking paper,wax paper,silicon paper etc.
This machine is very high speed model with non-stop operation by 4 shaft automatic exchanging.the changing core speed is very rapid.
The max speed is at 150meter per minute.it is capable for heavy of jumbo material loading up to 300kg.
The meter counter system is world top brand,and the magnetic powder break clutch system is at 100N.m for ensure the stable production with precise length control.
PLC is imported world top brand with very high user experiences level,the whole operation is only for click the touch screen at very user friendly.
This machine is multi-functional for different food industry paper rewinding,and it is very ideal for aluminium house foil rewinding too.
Main parameter:
Material:food paper,aluminium foil
Mother roll width:max 450mm
Mother roll ID:3/6''
Mother roll OD:600mm
Finished roll width:450mm max
Finished roll ID:25/35/40MM etc
Finished roll length:2-50meters
Speed:150m/min max
Power:3kw
Magnetic clutch:100N.m
Volt:220/380/415/450v



food baking paper rewinder, silicon paper rewinding machine, food wax paper rewinder machine
