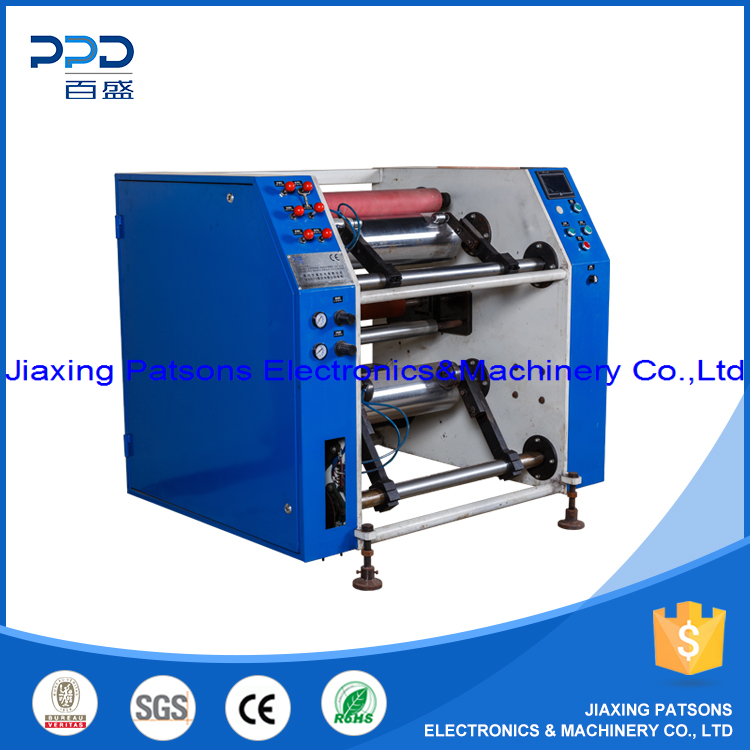

Semi auto stretch film rewinder machine

PPD-SARW500

Semi auto stretch film rewinder machine PPD-SARW500 is ideal model for rewinding the jumbo roll of stretch film into smaller diameter of stretch machine roll and hand roll.
The machine is at very high speed of 650meter per minute,it is ideal for investment of less techical skilled operator requires.
As 2 shaft rewinding design,buyer can save the time when one shaft is rewinding,the same time,operator can prepare the paper core loading for the another rewinding shaft.With multi-functional concern,this model can work as a stretch film baby roll slitter after the knife system switch on.
Machine adopts China top brand of electronc components,Inverter is from Taiwan top brand,it can ensure the machine for endurable heavy duty daily production.
Main technical parameters:
Material:Stretch film
Master reel width:20inch/500mm max 600mm(option)
Master reel ID:3inch
Master reel OD:20inch/500mm
Rewind roll width:2-20inch/50-500mm max 600mm(option)
Rewind roll ID:1/1.5/2/3inch
Rewind roll OD:300mm
Speed:650m/minute
Power:1.5kw
Voltage:220/380/415/450v





Semi auto stretch film rewinder machine, semi automatic stretch film rewinding slitting machine, stretch film baby roll slitter rewinder
