Cling film rewinding machinery

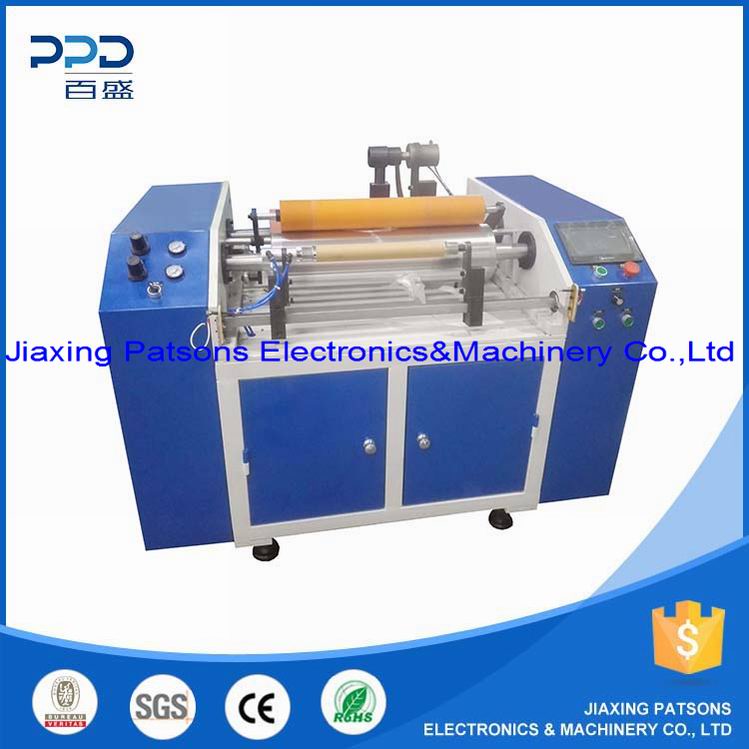

Semi automatic cling film roll rewinding machine
PPD-CFR500
Semi auto cling film roll rewinding machine PPD-CFR500 is a nice designed model for very compact in size,high speed for economy investment of cling film roll production.This model is very compact,and short in height,the female operator can sit down for production,it is automatic loading and start,automatic stop when reach length set,automatic unload the finished roll,the automatic cutting off of the finished roll is also included the machine function,operator only need to leg press for the button to cut off.
Machine can cater both PE cling film,and PVC food stretch wrap for casting film and blowing film.
The new model is upgrade for PLC control,the operation is by touch screen page,it is really a cost effective model with high production.
Main data:
Raw material:cling film roll
Parent roll width:100-500mm
Parent roll ID:76mm
Parent roll OD:450mm
Rewinding roll width range:100-500mm
Rewinding roll ID:30/35/38/40mm
Rewinding roll length:3-300meters
Speed:maximum 300m/minute
Total Power:1.5kw
Voltage:220/240/380/415/440v etc
.jpg)
.jpg)
VIDEO PRESENTATION
Semi automatic cling film roll rewinding machine, cling film roll production machine, pvc cling wrap roll manufacturing machine
