Paper roll slitting rewinding machine

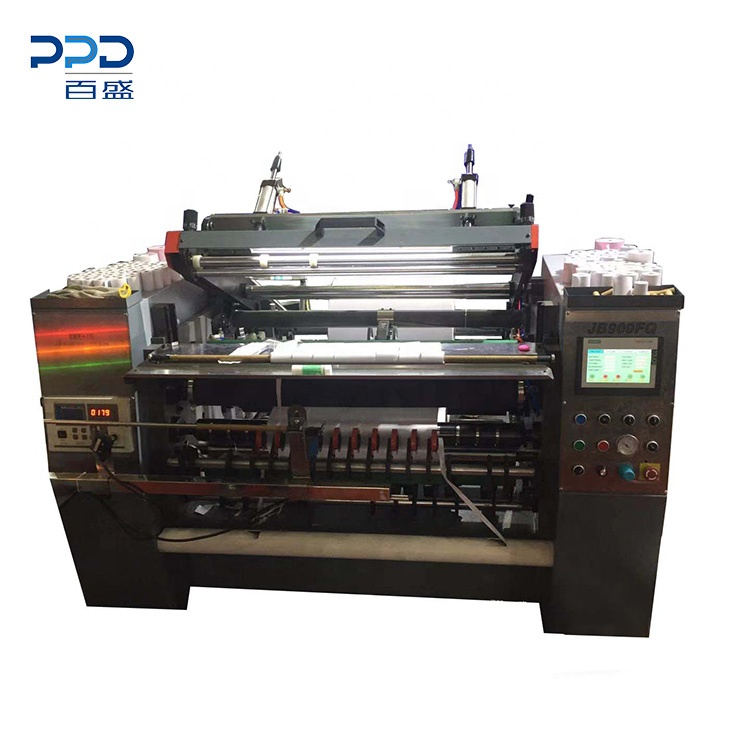

Cash Register Thermal FAX ATM POS Medical Replort Paper Roll Cutting And Winding Machine
PPD-800
Cheap price Cash register Thermal FAX ATM POS Medical Replort Paper Roll cutting and winding machine:Cheap price Cash register Thermal FAX ATM POS Medical Replort Paper Roll cutting and winding machine is completed with automatic core loading machine to co-work with main slitting rewidning machine for high speed production,it is high output with less labor involved for high lever automatiion.
it is with auto raw material loading, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency control and full pneumatic operation, compact structure, adjustable paper roll, accurate cutting , reliable performance, simple operation and so on. It is suitable for thermal paper,includes cash register paper,adding roll,ecg roll, fax paper and ticketing roll cutting, etc. Meter setting can be set directly on the touch screen.
PPD-TPCW900 single layer slitting machine configuration:
1. Automatic tension control system, 10 kg magnetic powder brake
2, frequency converter frequency control
3, Siemens PLC, touch screen and Siemens electrical control system
4, automatic raw material loading device
5, air shaft
6, automatic marking device
7, automatic metering counting device
8, wind to send waste device
9, configuration of 16 knives
10, configuration slitting size: 56mm, 75mm, 80mm
11. configuration 2 sets of 12mm winding mandrel, and give 2 different sizes.
12, using tools and other standard configurations
13 Delivery time: within 15 working days
Item No
Cheap price Cash register Thermal FAX ATM POS Medical Replort Paper Roll cutting and winding machine
Key Work
thermal paper roll ATM roll cash register roll slitter rewinder machine
Unwinding maximum width
800 / 900mm
Unwinding maximum diameter
1000mm
Minimum slitting width
>20mm
Mother roll core diameter
76mm
Maximum rewinding diameter
180mm
Product roll core diameter
12/18mm etc(8-50mm)
Maximum cutting speed
0-150m/min
Air supply
0.6Mpa
Weight 1500kg
Voltage 220/380/415/440/450v (option)
Note Due to different reel specifications, the winding diameter is different. Special specification machine, single layer 110mm, double layer 55mm, three layers 45mm
