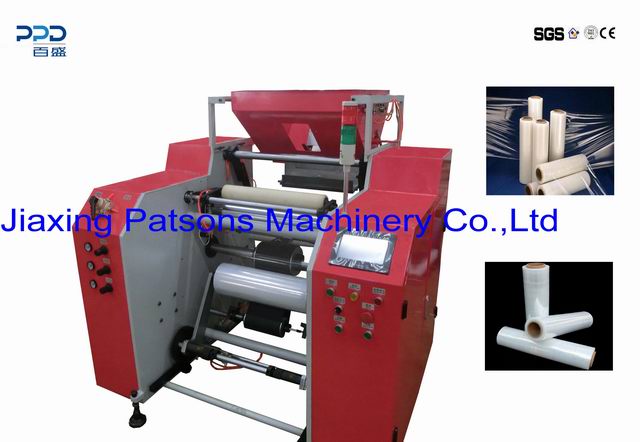

Automatic heavy machine roll stretch film rewinder 15kg

PPD-HV500

Automatic heavy machine roll stretch film rewinder 15kg is designed for catering the market in Mid East for heavy machine roll/hand roll rewinding demand at 15kg,18kg,20kg,22kg,up to 25kg,as same function,it can rewind small weight roll too for 2kg,4kg,5kg,6kg etc as multi-purpose.
This model is increased for mother roll weight loading at per user requirement.
The machine will supply with the automatic L shape convey system for easy packing of the ready roll since our machine is required one operator only,same time operating machine,and same time can pack the ready roll.
Machine adopted selected PLC unit,plus high definition touch screen for simple operation,only input the simple data required.Non-skilled operator can work with our machine.
Our company passed the SGS audited supplier,and BV audited supplier as 3rd party audit,It pass CE safety requirement,and ROHS ECO friendly certificate for Europe market.
Main profile;

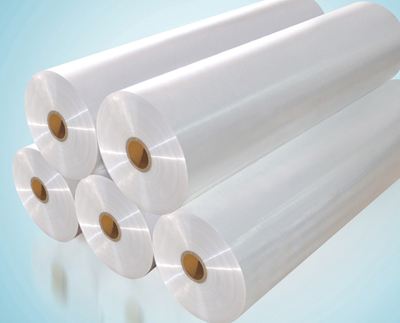

Material;Stretch film
Master roll width;max 520mm
Master roll inner diameter;3inch
Master roll outer diameter;500mm option
Sub roll width;max 520mm
Sub roll inner core diameter;25/38/50/76mm
Sub roll weight;max 15/18/25kg
Design speed;1500meter/minute
Total power;4kw
Volt;220/380/415/440v
Phase;3hase 4 wire
Air consumption;0.3Mpa
Note;A specific requirement can be customized machine.

Video Presentation;



Automatic heavy machine roll stretch film rewinder 15kg, automatic machine roll stretch rewinding machine, pallet stretch wrap rewinding machine
