Paper roll slitting rewinding machine

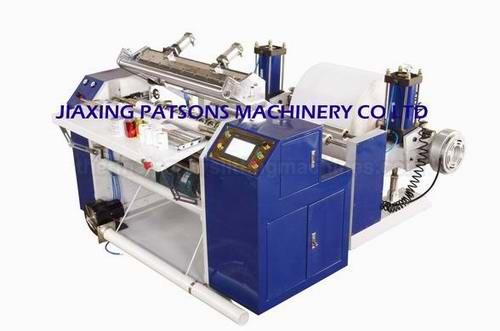

Coreless thermal paper roll slitter rewinder
PPD-CRW700
Coreless thermal paper roll slitter rewinder is Ideal for coreless ATM/POS/FAX/Small Thermal Rolls/NCR Rolls,Bond paper roll Slitting&Rewinding,Production complete With Auto Loading of Unwind Jumbo RollsAuto Loading of Re-wind paper feeding into the Rewinding station,auto unloading when product is ready from rewinding station.
Imported World class PLC programe Control/Touch Color Screen,Auto control of magnetic powder break system,Automatic tensioner control,It is compact,Steady for performing,Easy for operation,High production speed.
As 2 in 1 model,this model can produce thermal roll with core for both paper and plastic.
BRIEF TECHNICAL DATA:
Maximum Width : 700 mm
Maximum Mother Reel Dia : 1200 mm
Slitting Width (Standard) : Maximum 20-700mm
Maximum Rewind Diameter : 180mm dia.
Rewind Core Diameter : 10,12,12.7,15,25mm - Option
Cutting Speed : 168 M / per minute
Machine Overall Dimension :1600x1500x1600mm
Nett Weight of Machinery : 1.05 M/Ton
Power Voltage : 220/380/415 Voltage / 50 Hz(Option)
Total Power : 4.2kw (kilowatt)
MACHINE APPLICATION:
Suitable for all product raw materials
THERMAL & CARBONLESS& BOND PAPER ROLLS ETC.

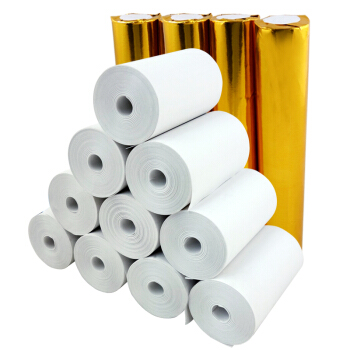

PAPER PRODUCTS:
Thermal Paper Rolls
POS - Electronic Cash Register Rolls
ATM - Bank Rolls
Car parking paper Rolls
Bank Tele printer Rolls
Receipt Ticketing Machine Rolls
ECG Rolls
Medical Report Rolls
Electronic Credit Card Slip Rolls
NCR Rolls
Bond Paper Rolls
All type of small paper rolls
Special design and made-to-order for unwind mother rolls
MACHINE FEATURES:
These range of machines are specially designed with the incorporation of the
best features available from Germany and Japanese Slitting & Rewinding
Production Machine & latest Technologies available
The selected parts and components are basically supplied by leading overseas
manufacturing plants in China
High precision, user friendly, easy operation and maintenance
Auto tension, paper feeding, adjustment & alignment control
Auto control length meter with alarm upon complete rewinding
Complete with ink end-roll marking to distance program by meter
Digital Computerized Control Panel Board
for all movement, adjustment and others
Machine comes with TOP Rotary Slitting Knives and Slitting Holders
Lists of LOWER Rotary Slitting Knives & Spacers suitable for maximum 4 rewind
small roll width (to be advised by buyers)
Complete set of essential machine tool kits
English Instruction/Manual Book + VCD on machine set-up & VCD on machine
in production (taken at one converting factory in China)
Video Display:
Coreless thermal paper roll slitter rewinder, tubeless ATM roll slitter rewinder, tube-less pos atm ecg cash register roll thermal roll slitter rewinder
